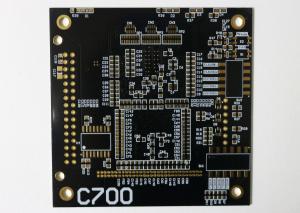

Special RF Rogers Material Air Dehumidifiers PCB Assembly , High Frequency

Brand Name : XCE
Model Number : XCER
Certification : ISO9001/TS16949/IPC/ROHS/UL
Place of Origin : China
MOQ : 1piece
Price : USD 10-100 Pieces
Payment Terms : T/T, Western Union, L/C
Supply Ability : 10000000Piece/Pieces per Month
Delivery Time : 5-8 work days
Packaging Details : inner:vacuum-packed bubble bag outer: carton box
Base Material : Rogers 4350B pcb
Number of Layers : 8-Layer
Copper Thickness : 1oz
Board Thickness : Mechanical drill: 8mil(0.2mm)
Surface Finishing : HASL/HASL lead free/immersion gold/ENIG
Min. Line Width : 0.075mm(3mil)
Min. Line Spacing : 0.1mm(4mil)
Min. Hole Size : 0.1mm(4mil)
Contact Now

The increasing complexity of electronic components and switches continually requires faster signal flow rates, and thus higher transmission frequencies. Because of short pulse rise times in electronic components, it has also become necessary for high frequency (HF) technology to view conductor widths as an electronic component.

Depending on various parameters, HF signals are reflected on circuit board, meaning that theimpedance (dynamic resistance) varies with respect to the sending component. To prevent such capacitive effects, all parameters must be exactly specified, and implemented with the highest level of process control.

Critical for the impedances in high frequency circuit boards are principally the conductor trace geometry, the layer buildup, and the dielectric constant (er) of the materials used.


CapabilityStandardAdvanced
Laminate materialsFR4 / FR1 / CEM-3 / CEM-1 / AluminumTeflon / High-TG / Rogers / Taconic
Surface Finish

HASL (vertical & Horizontal), Lead Free HASL,

HASL+Gold Finger,

OSP/Entek,

ENIG, ENEPIG,

Immersion Tin(ISn) ,Immersion Silver(IAg),

HASL (vertical & Horizontal), Lead Free HASL,

HASL+Gold Finger,

OSP/Entek,

ENIG, ENEPIG,

Immersion Tin(ISn) ,Immersion Silver(IAg),

Carbon Ink,

Hard Gold(Flash Gold), Soft Gold

Min. Thickness for inner layers0.020"-0.125"0.003”(0.07mm)
Board layers1-12 Layers1-24 Layers
Board Thickness0.5mm-3mm0.2mm-7mm
Copper weight0.5 oz – 3 oz0.5 oz – 6 oz
Minimum Trace Width / Spacing0.004"/0.004"0.003"/0.003"
Solder Mask ColorGreen,Blue,Black,Red,Yellow,Whitecustomized
Drill deviation0.008"±0.002” (0.05mm)
PTH hole tolerance0.008"±0.002” (0.005mm)
NPTH hole tolerance0.008"±0.002” (0.005mm)
Min hole size0.010"±0.002” (0.005mm)
E-testFlying Probe TesterTest-Jig/X-ray/ICT/AOI/FCT
Controlled Tolerance±15%±10%
Silkscreen ColorWhite, Black, Yellow, Green, Red, Bluecustomized
Min solder mask clearance size0.0080.003” (0.07mm)
Thickness0.020"-0.125"0.0005-0.0007”(0.012-0.017mm)
Min silkscreen clearance size0.010"0.006” (0.15mm)
IPC ClassClass 2Class 3
Blind ViasYESYES
Buried ViasYESYES
Aspect Ratio8/115/1
Carbon InkYESYES
Peelable MaskYESYES
Solder SampleYESYES
First ArticleYESYES
Certificate:ULSGS / ROH / ISO / TS16949 / ISO14001:2004

Acceptable file format:

GERBER filePROTEL 99/PADS / POWER PCB / AutoCAD /EGLE
Our Services

For many applications, it is sufficient to use Rogers material with an appropriate layer buildup. In addition, we process high-frequency materials with improved dielectric properties. These have a very low loss factor, a low dielectric constant, and are primarily temperature and frequency independent.

Additional favourable properties are high glass transition temperature, an excellent thermal durability, and very low hydrophilic rate.

We use (among others) Rogers or PTFE materials (for example, Teflon from DuPont) for impedance controlled high frequency circuit boards. Sandwich buildups for material combinations are also possible.


Which widely be used for :

Automotive Antennas / RFID

Back-up Aids
Collision Avoidance
Low-Noise Block Downconverter (LNB)
Mobile Infrastructure Antennas
Point to Point Digital Radios
Power Amplifiers
High Reliability

Airborne Antenna Systems
Broadcast Satellites
Ground Based Radar Systems
Millimeter Wave Applications
Missile Guidance Systems
High Speed Digital


Rogers High frequency pcb material:


ModelParameterthickness(mm)Permittivity(ER)
F4BF4B0.382.2
F4B0.552.23
F4B0.225,0.3,0.5,08,1,1.2,1.5,2,2.5,3.02.65
F4Bk0.8,1.52.65
F4B0.83.5
FE=F4BM12.2
RogersRO58800.254 0.508 0.7622.20 ± 0.02
RO43500.254 0.508,0.8,1.5243.5
RO40030.5083.38
TACONICTLF-350.83.5
TLA-60.254,0.8,1,1.5,2.65
TLX-80.254,0.8,1,1.62.55
RF-60A0.646.15
TLY-50.254,0.508,0.82.2
TLC-320.8,1.5,33.2
TLA-350.83.2
ARLONAD255C06099C1.52.55
MCG0300CG0.83.7
AD0300C0.83
AD255C03099C0.82.55
AD255C04099C12.55
DLC22012.2

Advantage


1. PCB factory directly

2. PCB Have the comprehensive quality control system

3. PCB good price

4. PCB quick turn delivery time from 48hours

5. PCB certification(ISO/UL E354810/RoHS)

6. 12 years experience in exporting service

7. PCB is no MOQ/MOV.

8. PCB is high quality.Strict through theAOI(Automated Optical Inspection),QA/QC,fly porbe ,Etesting


Some Typical Applications:
• Automotive radar applications
• Global positioning satellite
antennas
• Cellular telecommunications
systems - power amplifi ers and
antennas
• Patch antenna for wireless
communications
• Direct broadcast satellites
• Datalink on cable systems
• Remote meter readers

Rogers 4350B laminate in stock

  • 2 layer rogers pcb laminate
  • Green solder mask,
  • Model:XCER
  • Copper THK: 1OZ
  • Location: Shenzhen
